Product Details

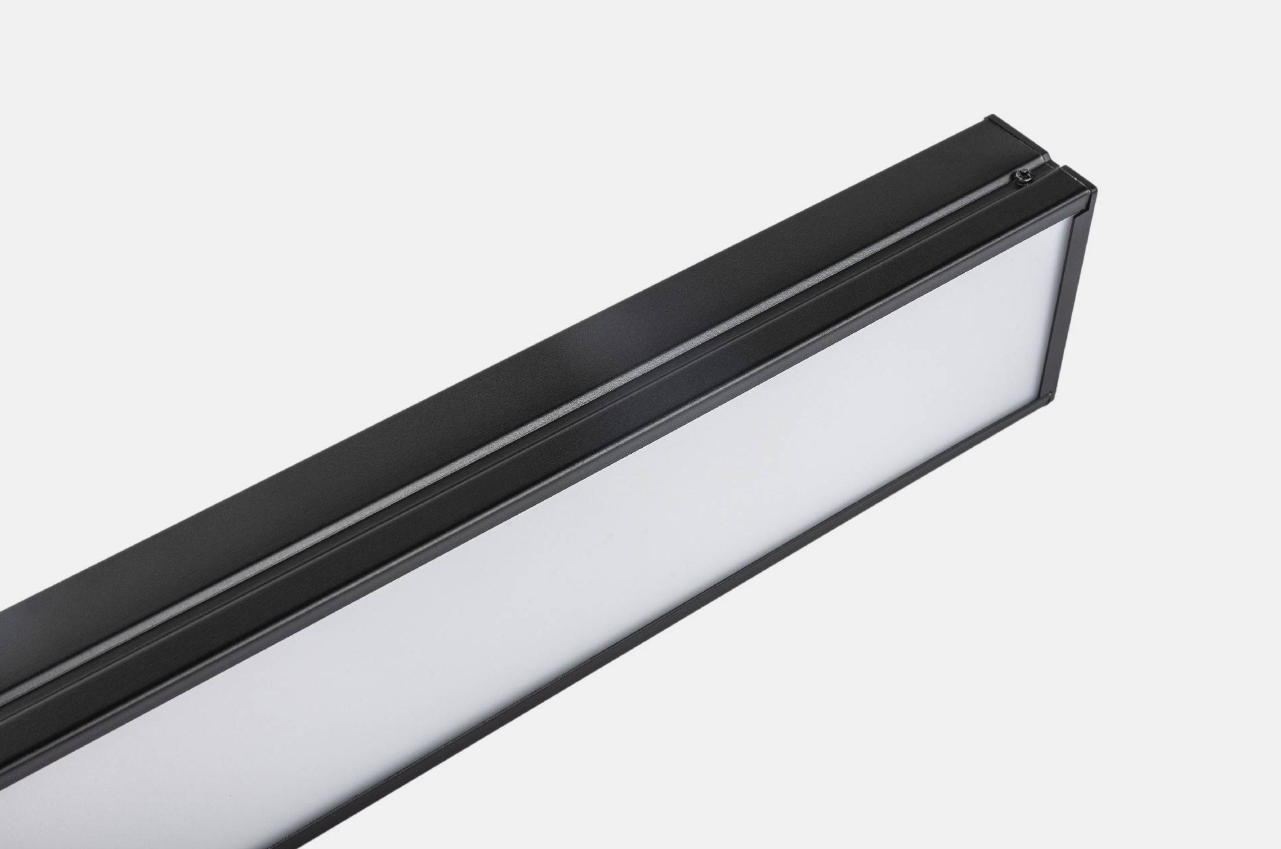

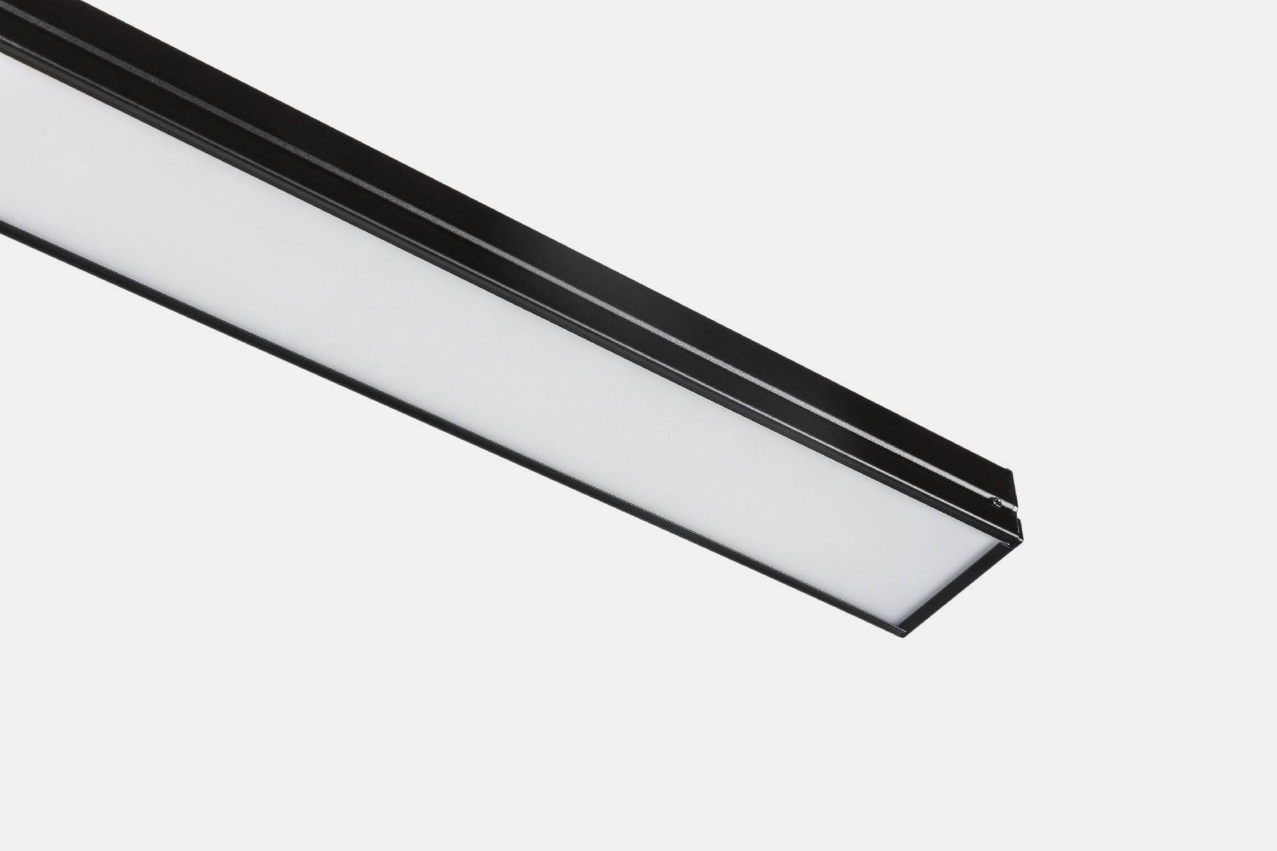

F300 (Ultra-thin Linear Light)

adopts to innovative eco-friendly material,achieving ultra-thin light body design

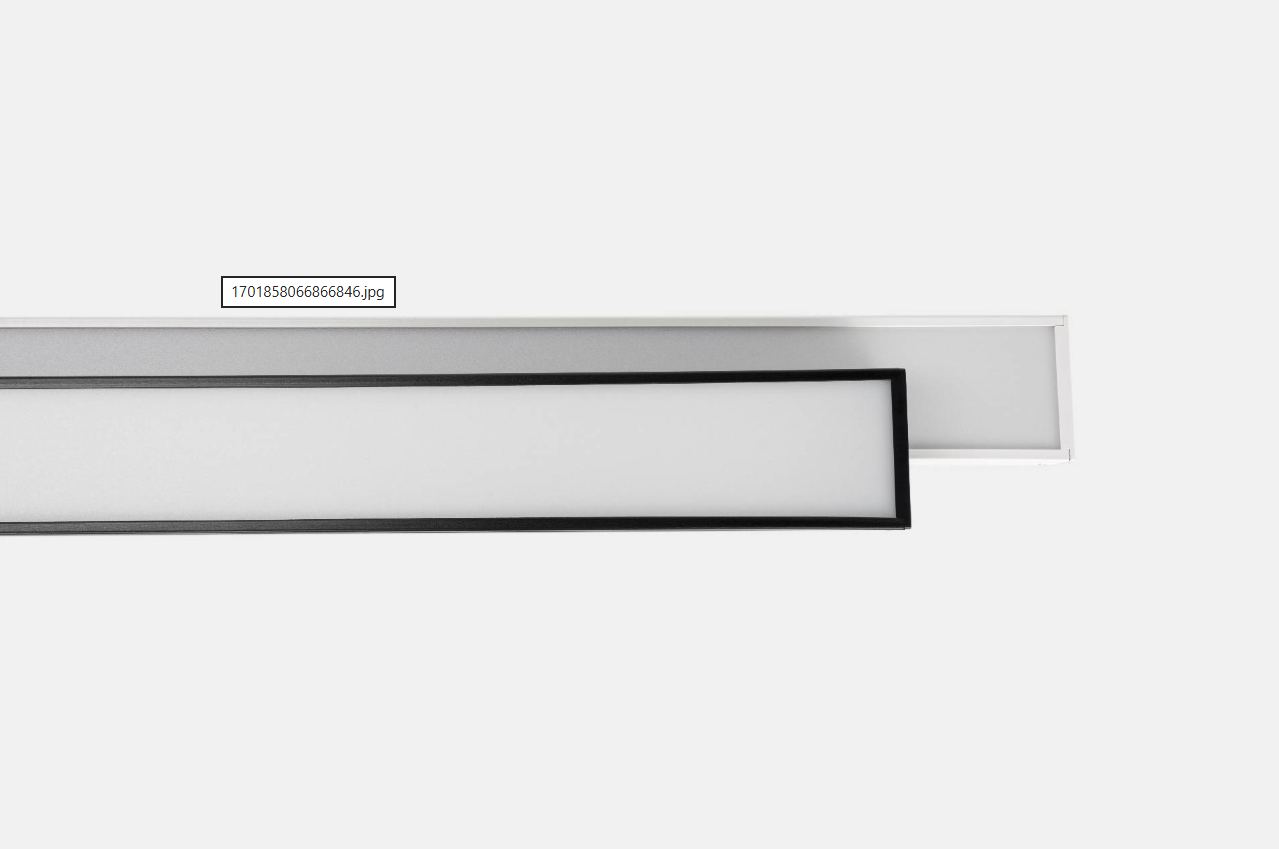

color: Matte white/Matte black

specification: 1200(Length)

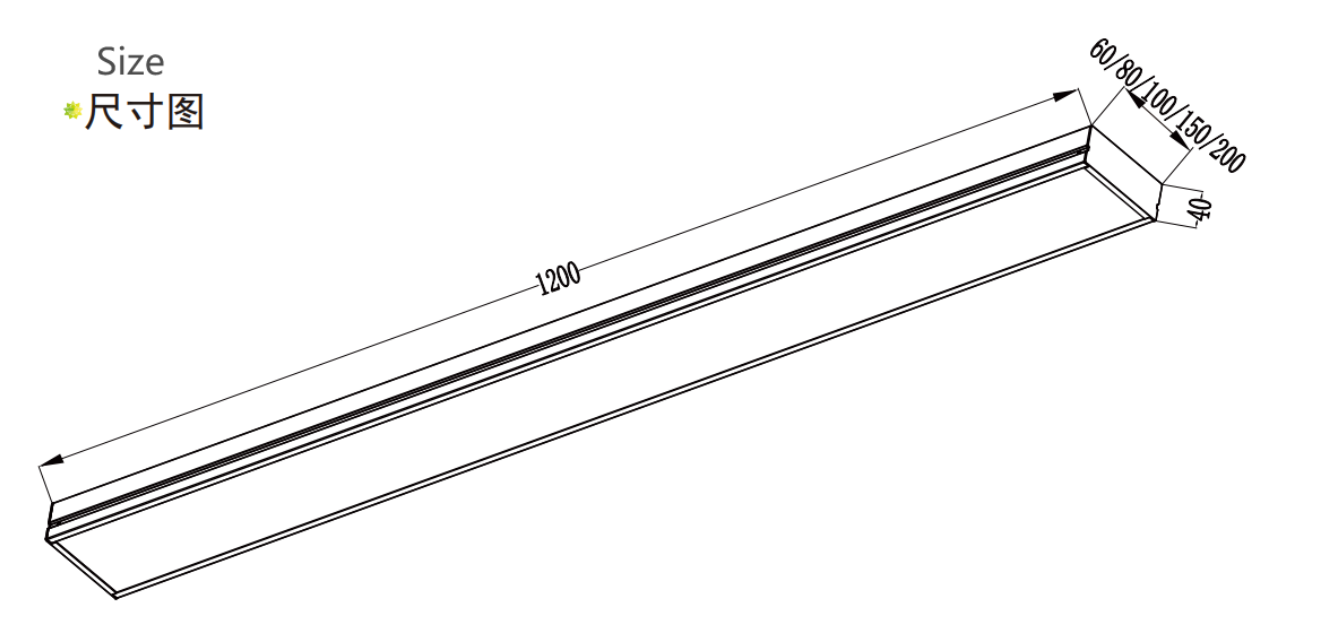

size: L1200*W60*H40mm/L1200*W80*H40mm

installation:

input voltage: AC220-240V

watt: 24W; 30W; 36W

color temperature: 4000K/6500K

optics: PC

Ra: >80

light effect: 80lm/w; 100lm/w

UGR: < 23

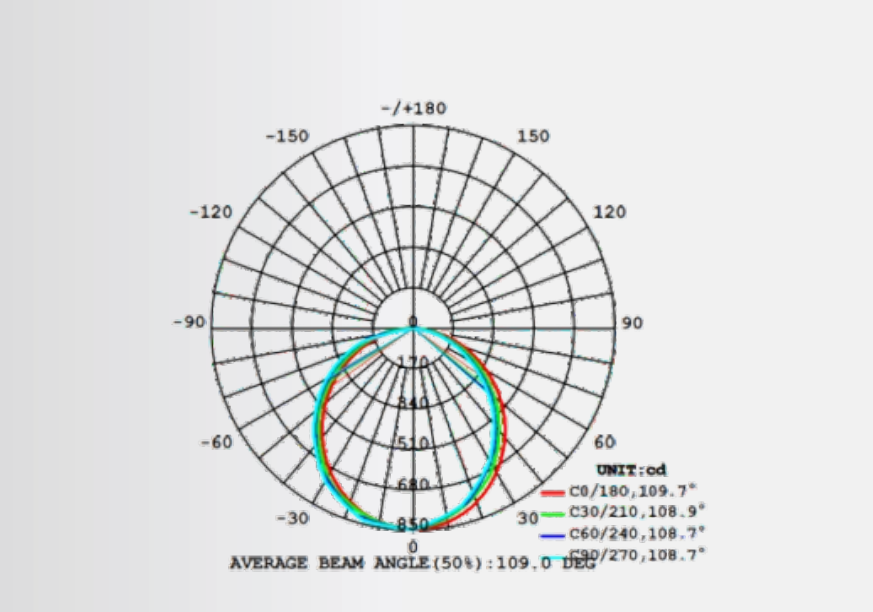

beam angle: 120°

certification: CCC, CE

PF: 0.5/0.9

IP: 20


Our Social Media

Description



1. Structural Characteristics:

- The LED chips used are from a well-known international brand, and good heat dissipation, environmental protection and

long life.

- Options are available for different color temperatures such as cool white, neutral white, and warm white.

- The product incorporates a new lighting system design, resulting in high brightness and more uniform illumination.

- The housing is made of coated steel sheet material, which is lightweight and environmentally friendly.

- The overall design is aesthetically pleasing and allows for seamless and continuous extension during installation.

- Multi-Installation methods are available for customers to choose from.



2. The features of the product:

- The product adopts a dedicated constant current circuit design, ensuring stable, safe, reliable, and energy-efficient

operation.

- It is environmentally friendly and free of lead, having obtained ROHS certification..

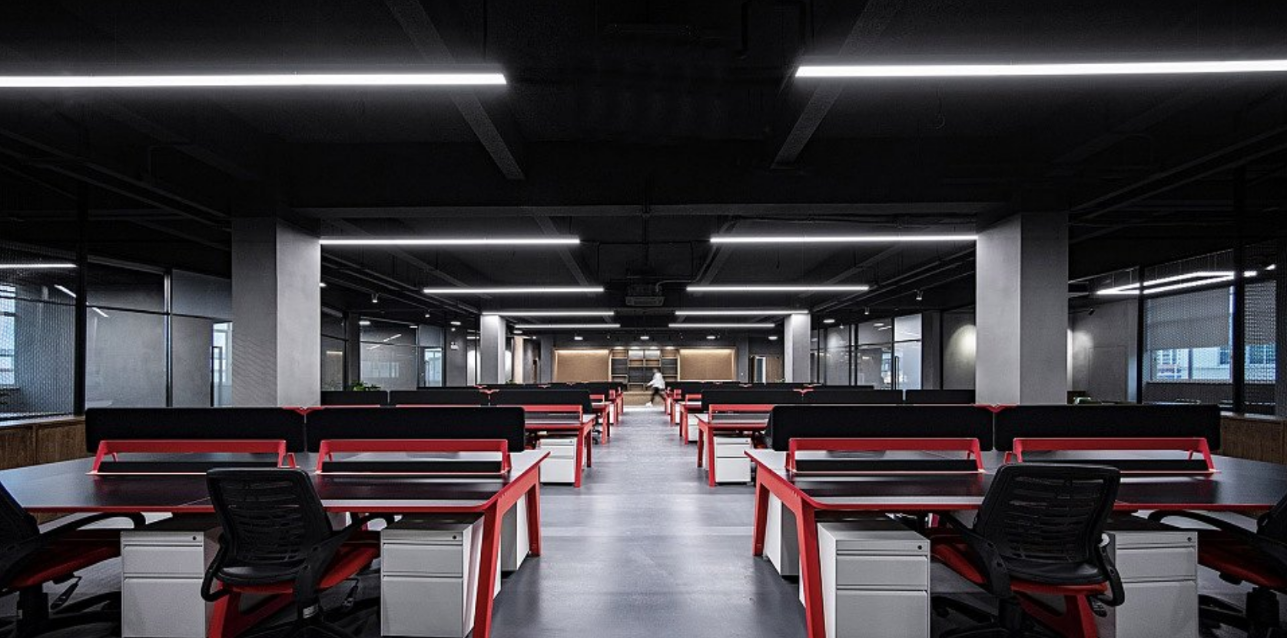

3. Application scenarios:

- Aluminum profile lights are widely used in various fields;

- including large supermarkets, conference rooms, factories, office areas, schools, and public facilities.
