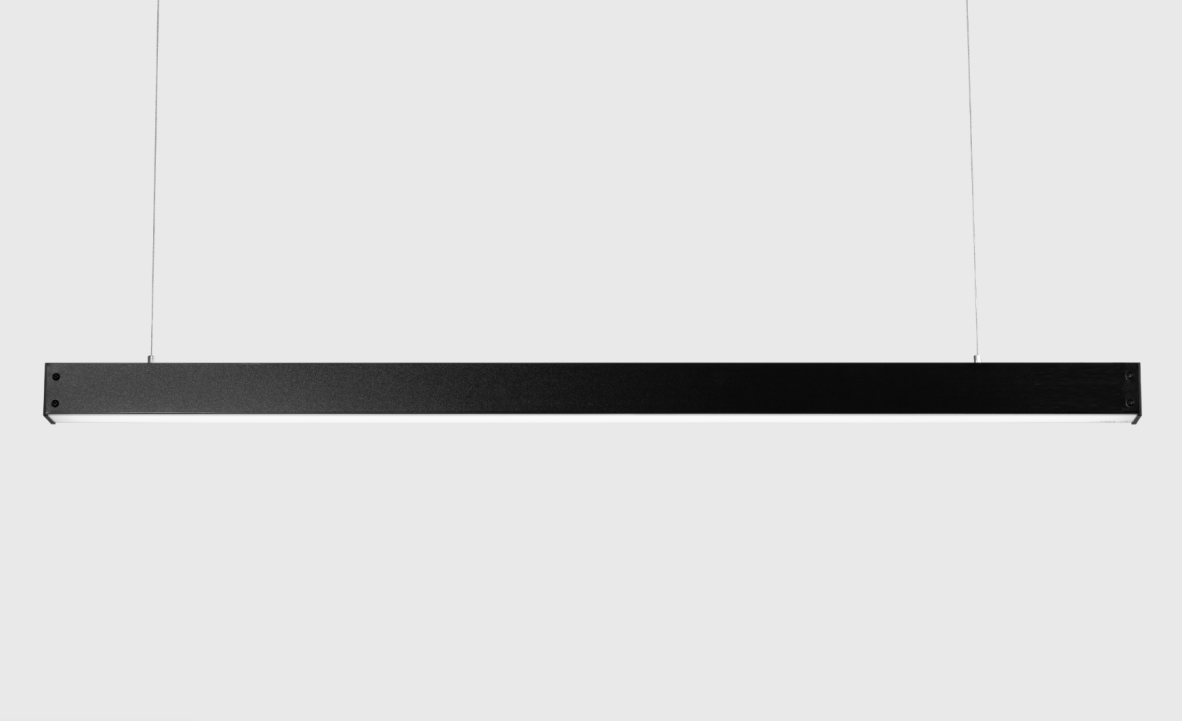

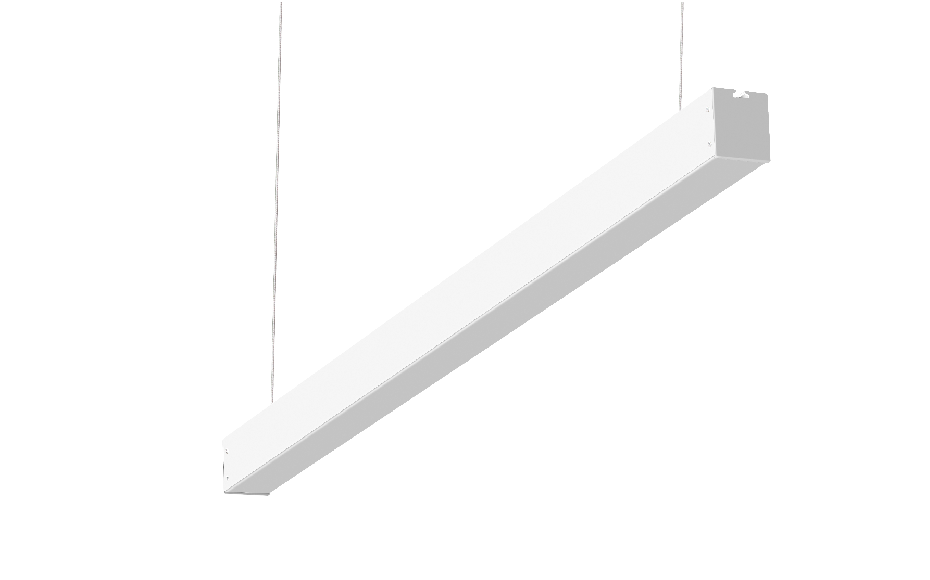

F156 (50 width)
adopts to innovative eco-friendly material,precision automatic forming process, at the time of cost redution, quality and efficiency simultaneously improved
adopts to innovative eco-friendly material,precision automatic forming process, at the time of cost redution, quality and efficiency simultaneously improved
1. Structural Properties
- Adopt environmental friendly pre-coated metal steel material, scratch and corrosion resistant,environmental,high structural
strength

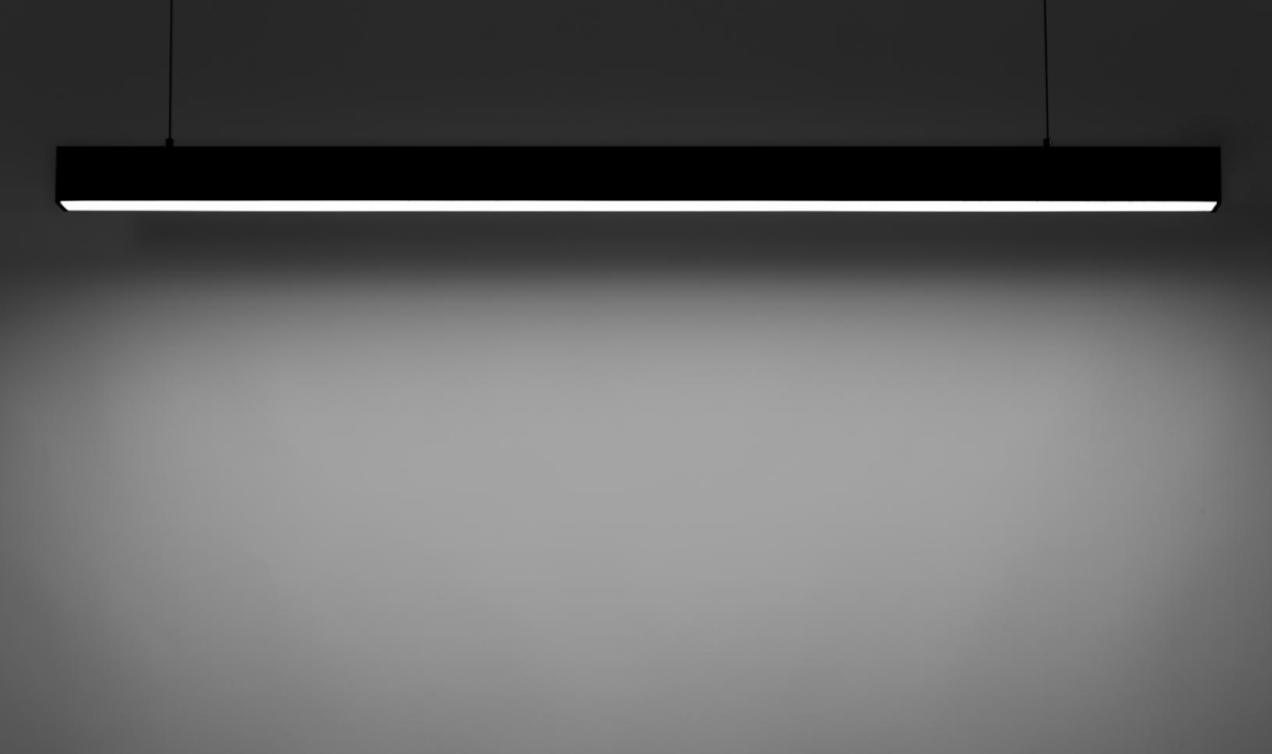

- Adopt high brighten LED chips and special optic design,soft and evenly distributed light

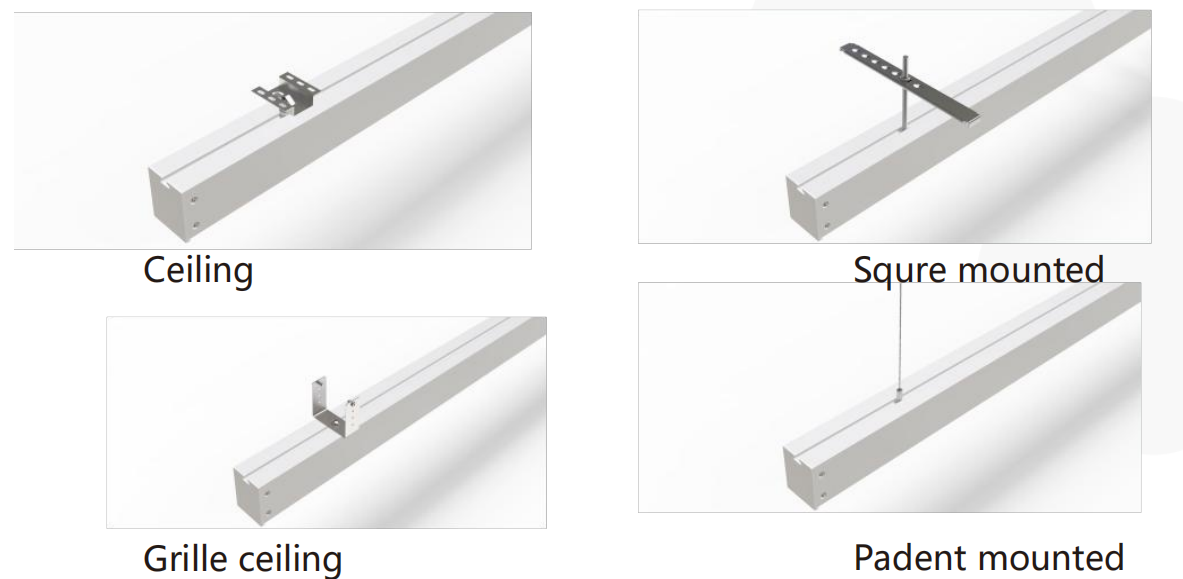

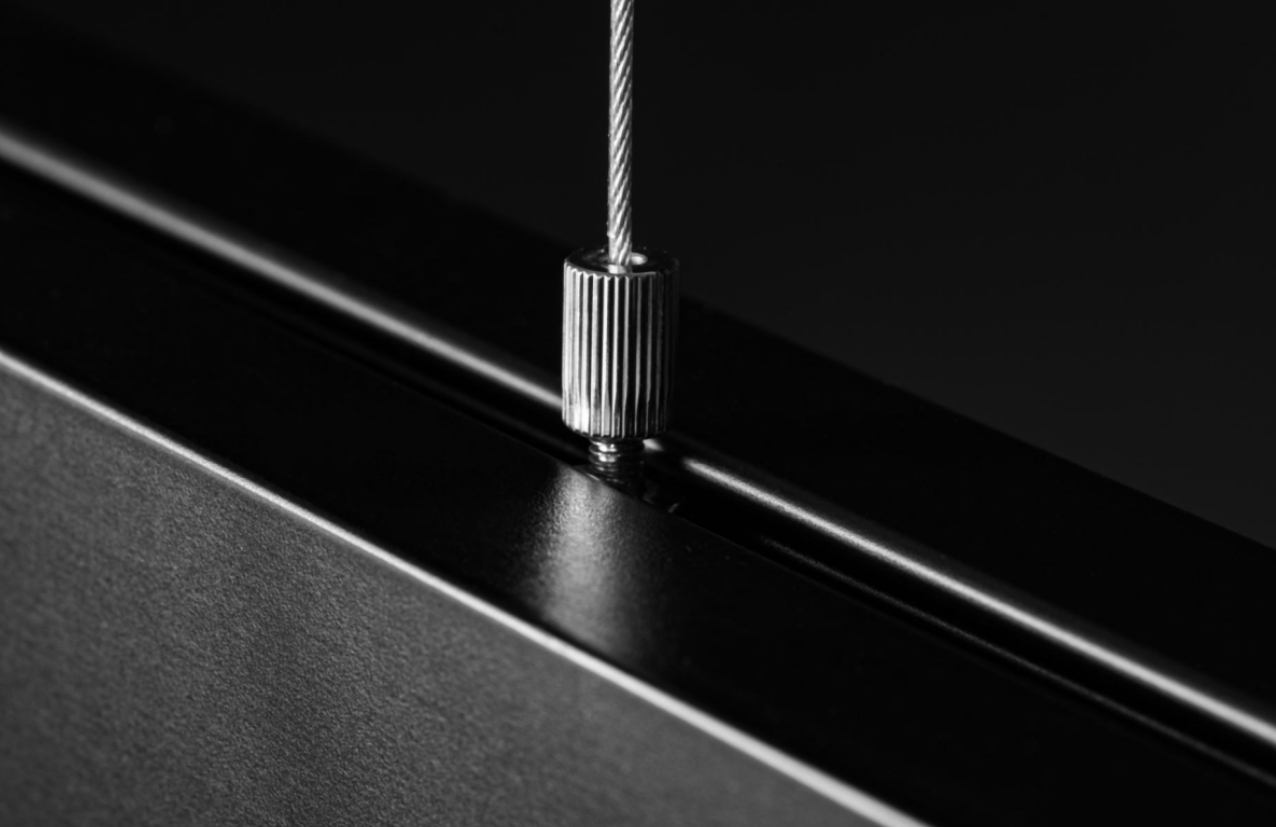

- Simple design,fashionable and generous.Pendant,ceilling,square mounted, grille mounted,etc., varieties of simple and
flexible installation methods

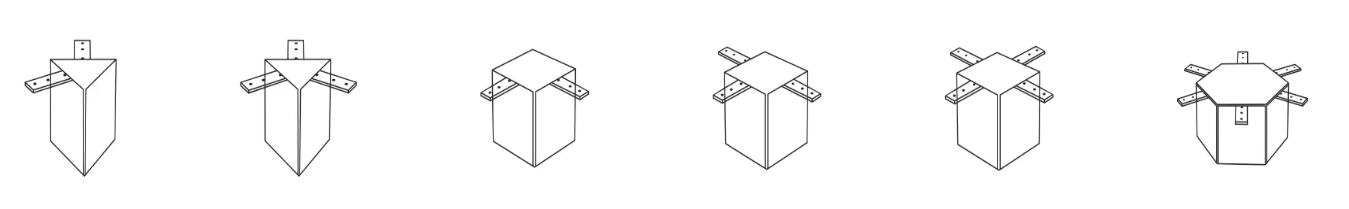

- Shape connector like X,T,L,etc., can be combined to kinds of multi-shapes or one straight line
- Set-in DIP Switch on the backside,3 CCT dimmable and 3 power dimmable

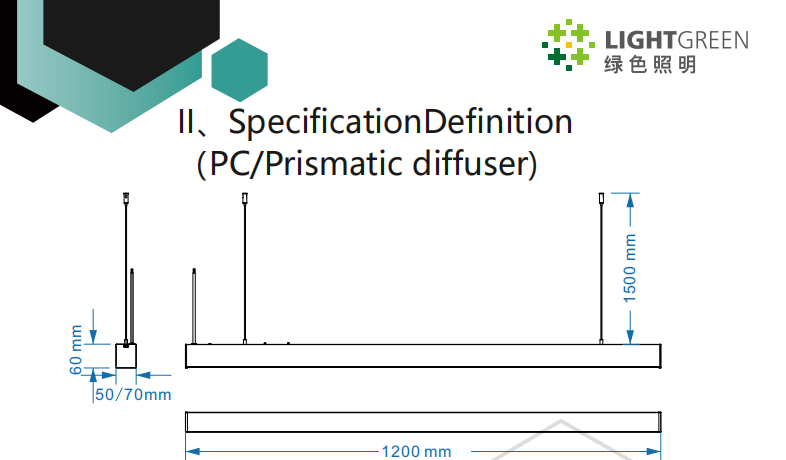

- Black and white light case to choose,can be customized different length from 0.6m-3.0m
- Light efficiency is more than 100lm/W,maxi power can reach 48W
2. Functional Properties
- Hidden type built-in non-isolated power supply,pass CE ,ENEC,CCC certificates,high light efficiency,long lifespan
- DIP SWITCH 3 CCT selectable:3000K/4000K/5000K
3. Application
- Widely used in front desks,meeting rooms,office zones,schools,hospitals or public facilities,etc kinds of areas
