Product Details

F187

Adopts to innovative environmental friendly material,precision automatic forming process,recessed type with edges design achieves the seamless combination between lighting fixtures and ceiling,effectively save spaces

color: Matte white/Matte black

specification: 1210 (Length)

size: L1210*W84*H55mm/L1210*W114*H55mm

installation:

input voltage: AC220-240V

watt: 24W; 36W; 28/32/36/40W tunable; 28/32/36/40W tunable

color temperature: 3000K/4000K/5000K/6500K

optics: PC

Ra: >80

light effect: 100lm/w; 110lm/w

UGR:

beam angle: 120°

certification: CCC, CB, CE

PF: 0.9

IP: 20


Our Social Media

Description



1. Structural Characteristics:

- The LED chips used are from a well-known international brand, and good heat dissipation, environmental protection and

long life

- Options are available for different color temperatures such as cool white, neutral white, and warm white

- The product incorporates a new lighting system design, resulting in high brightness and more uniform illumination

- The housing is made of coated steel sheet material, which is lightweight and environmentally friendly

- The overall design is aesthetically pleasing and allows for seamless and continuous extension during installation

- Multi-Installation methods are available for customers to choose from

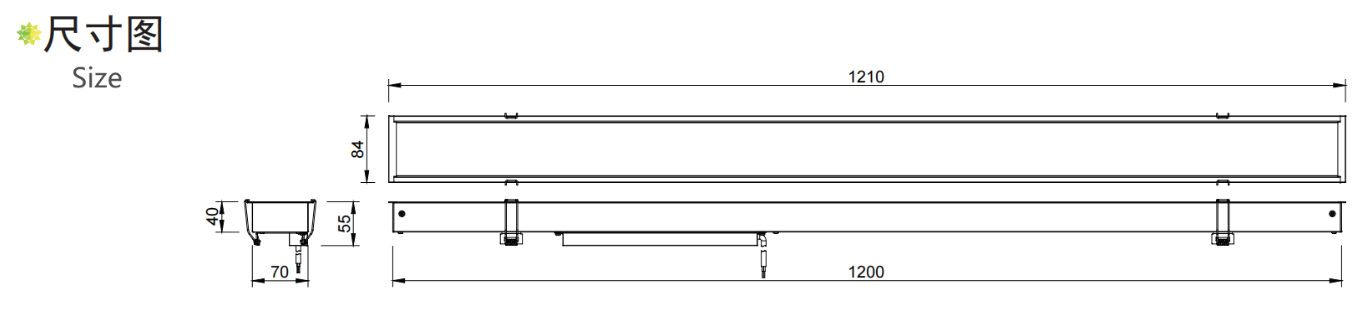

屏幕截图 2025-12-23 084918.png


2.The features of the product:

- The product adopts a dedicated constant current circuit design, ensuring stable, safe, reliable,  energy-efficient operation

- It is environmentally friendly and free of lead, having obtained ROHS certification

3. Application scenarios:

- Aluminum profile lights are widely used in various fields

- including large supermarkets, conference rooms, factories, office areas, schools, and public facilities

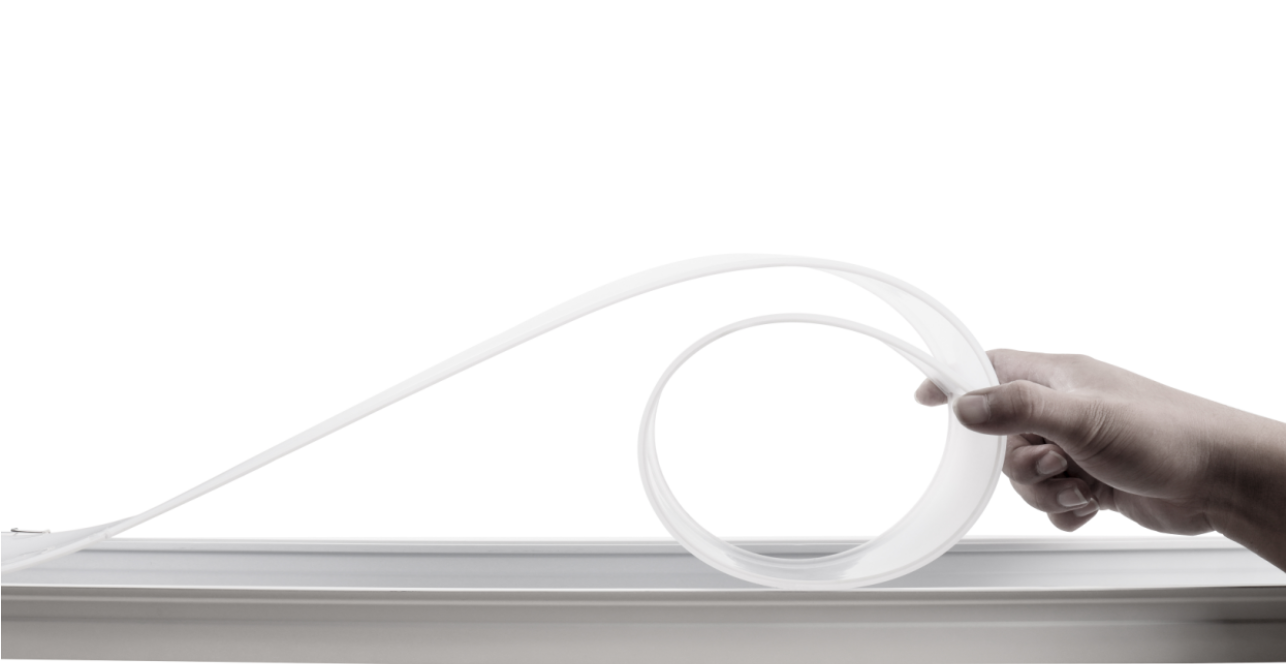

屏幕截图 2025-12-12 180155.png

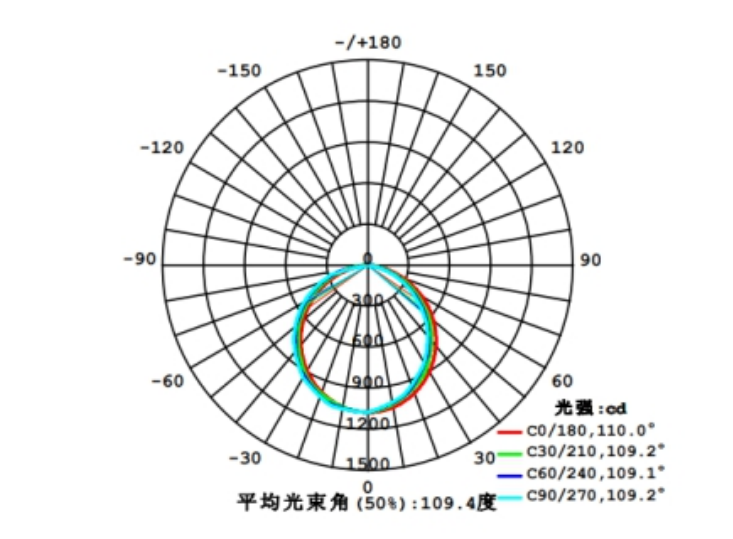

屏幕截图 2025-12-13 091446.png
